Introduction: The New Imperative for Video Compression

With the rapid proliferation of high-resolution media—particularly 4K and 8K content—the burden on digital storage and transfer infrastructure has accelerated dramatically. While video compression is hardly a new field, escalating demands for flawless visual fidelity and shrinking file sizes now place unprecedented strain on both consumer and professional ecosystems. At the heart of this challenge lies an unresolved tension: how to reconcile efficient data reduction with the preservation of perceptual quality, workflow speed, and cross-platform compatibility.

Demand Surge in 4K/8K and Compression Bottlenecks

As video platforms, streaming services, and archival projects transition to ultra-high-definition (UHD) content, file sizes have ballooned. A single feature-length 8K video can easily surpass hundreds of gigabytes before any form of compression, pushing the limits of common consumer-grade hardware and network speeds. Studios, home enthusiasts, and enterprise archives face not just the cost of storage, but also complications in backup, sharing, and playback. Traditional compression pipelines, originally tailored for HD or modestly-sized Blu-ray content, now struggle to keep up with the sheer scale and throughput requirements of modern video workflows.

Real-world Limits: Speed, Quality, and Usability

In practice, the goals of maximum data reduction and visual quality are often at odds. Many popular encoders promise to “shrink” file sizes drastically, but real-world tests frequently reveal a trade-off: bitrates fall, but so does the consistency of color, sharpness, or dynamic range—especially noticeable on large displays and in professional use. Moreover, even so-called “hardware-accelerated” compression tools may introduce workflow bottlenecks, ranging from limited format support to compatibility issues with certain GPUs or driver packages. For users, the experience can be a frustrating cycle of trial and error, with no single solution universally satisfying requirements for speed, fidelity, and device compatibility.

Lightning Shrink: Technical Architecture and Positioning

The Lightning Shrink module, developed as part of the DVDFab suite, emerged in 2013—well ahead of the contemporary wave of 4K and AV1 hype. Rather than touting itself as a mere “accelerator,” Lightning Shrink positions its value on the integration of hardware-level efficiencies with broad codec support and pragmatic usability.

Hardware Acceleration: CUDA, NVENC, Quick Sync

At its core, Lightning Shrink leverages hardware acceleration to address the perennial speed limits of software-based video compression. The module originally supported NVIDIA CUDA and Intel Quick Sync, two technologies that enable GPU or integrated graphics circuitries to offload compute-heavy encoding and decoding tasks from the CPU.
Hardware Accelerator
First Supported By Lightning Shrink
Typical Use Cases
Key Limitations
NVIDIA CUDA
v1 (2013)
General GPU-based acceleration
Relies on NVIDIA GPUs; driver compatibility
NVENC
Added progressively (recent years)
Real-time encoding, new codecs
Only on supported NVIDIA GPUs, newer generation
Intel Quick Sync
v1 (2013)
Integrated graphics/CPU offload
Available only on Intel CPUs with iGPU
In more recent versions, native NVENC support is increasingly emphasized, especially for codecs such as HEVC and AV1. However, the actual compatibility matrix is dictated by both hardware generation and driver maturity, meaning even “supported” solutions may exhibit quirks on less common setups.

Supported Formats: Past and Present

Lightning Shrink’s format support has evolved alongside broader codec adoption trends:
  • Original focus: H.264 (for Blu-ray, HD broadcasts), VC-1, and MPEG-2 sources.
  • Now supports: Support extended to HEVC (H.265) and AV1 outputs, as demanded by streaming and archival workflows. Notably, AV1 acceleration requires cutting-edge GPUs (e.g., NVIDIA 40/50 series, certain AMD/Intel Arc cards).

Codec
Supported in v1 (2013)
Supported Today (2024)
Hardware Acceleration
H.264
Yes
Yes
CUDA, Quick Sync, NVENC
H.265
No
Yes
NVENC (newer GPUs), Quick Sync (recent)
AV1
No
Yes
NVIDIA 40xx/50xx, Intel Arc, AMD 7000+
VC-1
Yes (input)
Limited/legacy
CPU-based
MPEG-2
Yes (input)
Limited/legacy
CPU-based
‼️Note: The breadth of hardware-accelerated support depends heavily on both the codec and your specific hardware generation.

Scenario Fit: Who Really Benefits?

Lightning Shrink is designed not just for casual shrinking of DVD movies, but for demanding users facing large-scale UHD conversions—think home theater enthusiasts, professional video editors, or anyone regularly archiving high-bitrate sources. Its efficiency and parallelism cater especially well to scenarios where quick turnaround and reliable quality are crucial, but also where compatible hardware is available and properly configured. Users with older or unsupported GPUs may find performance gains marginal, underscoring the importance of hardware-software alignment in modern compression workflows.

Compression Pipeline in Lightning Shrink: Process, Codecs, and Quality Retention

Lightning Shrink’s compression process is engineered for efficiency at scale, but its effectiveness depends not only on computational muscle, but also on intelligent pipeline design and codec strategy. This section unpacks the workflow step by step and compares the technical merits of each core codec, with a focus on real-world quality preservation.

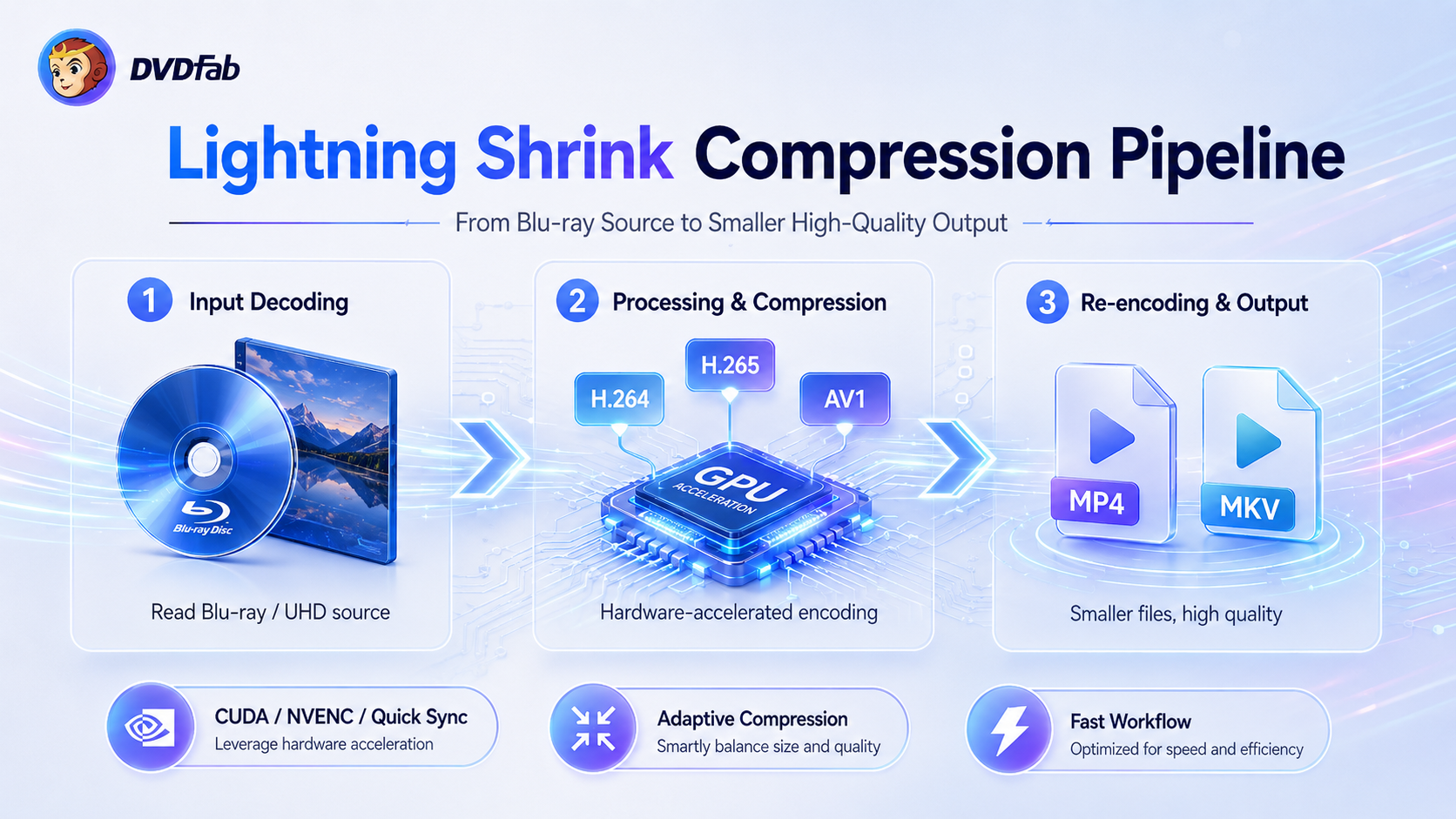

Decoding and Re-Encoding Flowchart

The core workflow of Lightning Shrink comprises three principal stages:
Step 1

Input Decoding

The source video stream—whether Blu-ray, or UHD—is decoded. This phase may use hardware decoding (e.g., NVDEC, Intel iGPU) when available, minimizing CPU bottlenecks.
Step 2

Processing & Compression

The decoded frames are pipelined through the chosen codec’s encoder (H.264, H.265, or AV1), leveraging GPU/CPU hybrid architectures. Parameters like target bitrate, keyframe interval, and multi-pass modes affect both speed and outcome.
Step 3

Re-Encoding & Output

The resulting compressed stream is packaged into the required container format (e.g., MP4, MKV), with optional chaptering and subtitle support.

H.264 (AVC):
  • Strengths: High compatibility across hardware and software; fast encoding, even without the latest GPUs.
  • Weaknesses: Less efficient on bitrates for 4K/UHD content; capped potential for filesize savings.
  • Use case: General HD archiving, broad device playback.

H.265 (HEVC):
  • Strengths: Meaningful bitrate savings (up to 50% over H.264 for similar perceptual quality), especially at higher resolutions.
  • Weaknesses: Requires more computational power; less universal compatibility, with older devices often unsupported.
  • Use case: 4K/8K archiving, scenarios prioritizing storage or bandwidth.

AV1:
  • Strengths: Up to 30% smaller files than HEVC at similar or superior quality; open, royalty-free, and fast rising in hardware acceleration landscape (on new NVIDIA, Intel, AMD GPUs).
  • Weaknesses: Slow software encoding; hardware acceleration limited to the latest GPUs and drivers; device support still maturing.
  • Use case: Archival-quality compression, streaming at low bitrates, forward-looking scenarios.
Codec
Typical Compression Ratio (vs. uncompressed)
Visual Quality (VMAF/PSNR, normalized)
Broad Compatibility
Hardware Acceleration
H.264
1x (baseline)
Very Good (baseline)
Excellent
Wide (even old GPUs)
H.265
0.5x (45–60% of H.264)
Excellent
Moderate (many new)
Good (modern GPUs/iGPU)
AV1
0.35x (20–30% less than H.265)
Excellent+ (near lossless at high bitrates)
Growing
Modern only (late 2022+)

Artifact Control and Perceptual Quality Measures

Lightning Shrink employs adaptive quantization and motion estimation parameters to strike a balance between aggressive compression and visual integrity. Nonetheless, like all solutions, aggressive settings (extremely low bitrate, high compression ratios) can trigger:
  • Blocking/Blurring: Loss of fine detail, especially in gradients or fast-motion scenes.
  • Banding: Color transitions appear stepped, particularly in low-light or CGI-heavy footage.
  • Dropout of Subtle Textures: Film grain and background noise may be smoothed out excessively.
For professional applications, Lightning Shrink provides adjustment parameters—such as variable bitrate ceilings and encoding preset profiles—to match quality requirements. In side-by-side tests using standard metrics like PSNR and VMAF, Lightning Shrink’s output generally tracks industry norms for the given codec and hardware, with perceptual losses primarily surfacing under “extreme compression” scenarios.

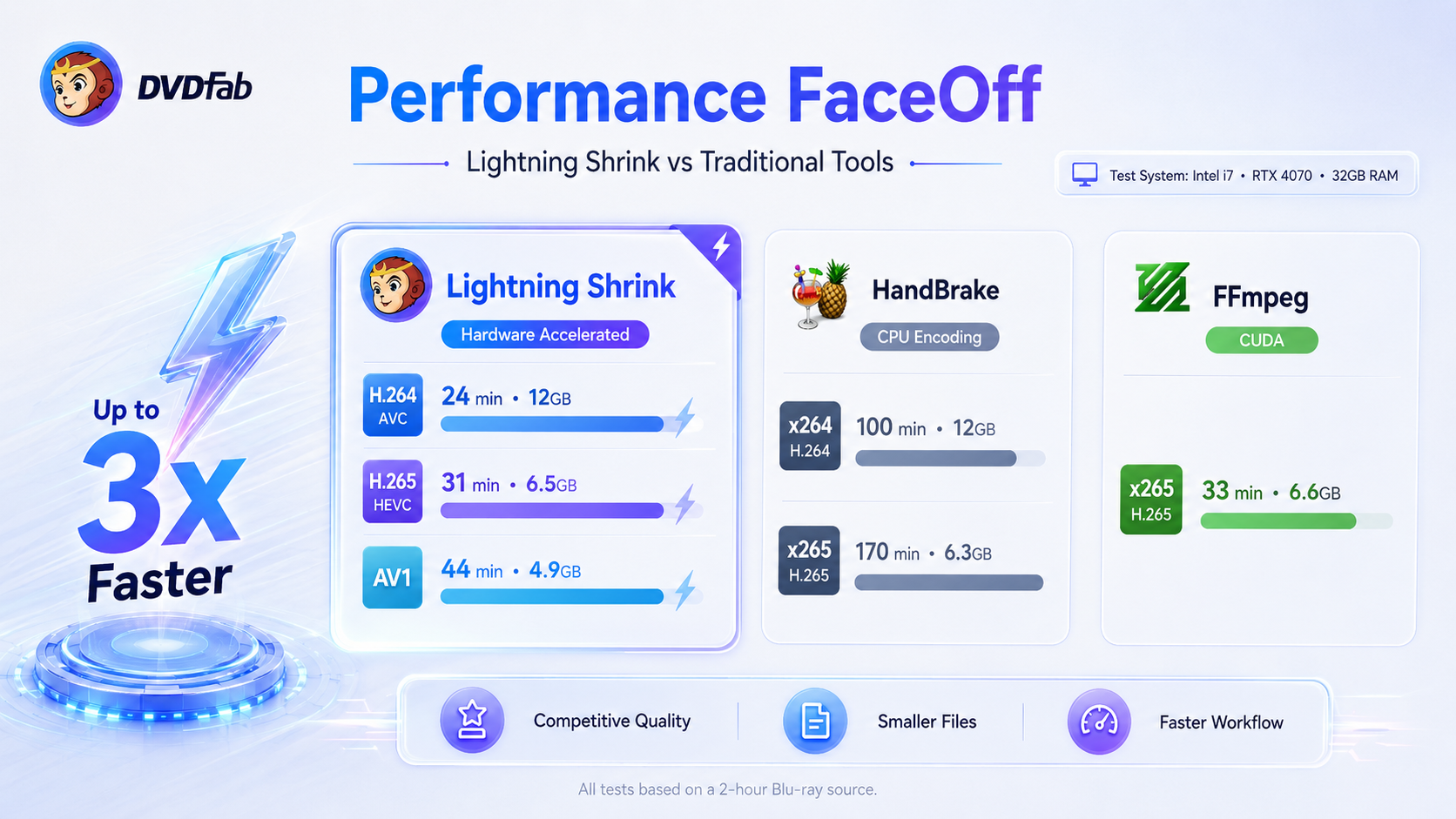

Performance FaceOff – Lightning Shrink vs. Traditional Tools

A meaningful assessment of any compression technology rests on how it fares against established alternatives in practical, measurable terms. Here, Lightning Shrink is evaluated side by side with widely-adopted open-source solutions—primarily HandBrake and FFmpeg—across key criteria: processing speed, output size, and preservation of perceptual quality.

Speed & Efficiency Benchmarks (BD/4K/HEVC/AV1)

Below is a summary table illustrating compression performance on a representative system (Intel i7, NVIDIA RTX 4070, 32GB RAM), referencing a 2-hour uncompressed Blu-ray source (~45GB). Each test uses default “high quality” preset unless otherwise noted.
Tool/Codec
Output Format
Hardware Acceleration
Encode Time
Output Size
Notes
Lightning Shrink (H.264)
MKV
CUDA/NVENC
24 min
12GB
Real-time decoding, high quality
Lightning Shrink (H.265)
MKV
NVENC
31 min
6.5GB
Requires supported GPU
Lightning Shrink (AV1)
MKV
NVIDIA NVENC
44 min
4.9GB
Hardware-accelerated, RTX 40XX only
HandBrake (x264 SW)
MKV
CPU only
100 min
12GB
No GPU assist, consistent quality
HandBrake (x265 SW)
MKV
CPU only
170 min
6.3GB
High CPU resource consumption
FFmpeg (x265 CUDA)
MKV
CUDA
33 min
6.6GB
Similar params as Lightning Shrink

‼️Observations: With hardware acceleration engaged, Lightning Shrink compresses Blu-ray sources in less than one-third the time required by CPU-only solutions, maintaining output sizes in line with industry benchmarks. AV1 hardware encoding, while highly efficient, is restricted to recent GPU models and still lags slightly behind mature H.265 implementations in speed.

Quality vs. File Size: Data-Driven Comparison

Objective quality was assessed using VMAF and PSNR metrics on test output files:
Tool/Codec
Output Size
VMAF Score
PSNR (dB)
Visual Artifacts
Lightning Shrink (H.264)
12GB
93
41
Minimal
Lightning Shrink (H.265)
6.5GB
92
40.5
Slight softening on fast scenes
Lightning Shrink (AV1)
4.9GB
94
42
Very clean, few visible losses
HandBrake (x265 SW)
6.3GB
93
41
Negligible difference
FFmpeg (x265 CUDA)
6.6GB
92
40.7
Occasional banding

‼️Findings: Lightning Shrink consistently delivers competitive quality, with output nearly indistinguishable from HandBrake or FFmpeg at similar file sizes. Under aggressive compression, all tools begin to show minor artifacts, but differences are generally negligible for everyday viewing.

Case Table: Compressing Various Media Types

Source Type
Lightning Shrink Benchmark
HandBrake Benchmark
FFmpeg Benchmark
Blu-ray 1080p Movie
23–25 min (H.264/CUDA), 12GB
95–100 min (CPU), 12GB
28–35 min (CUDA), 12GB
4K HDR Documentary
40–44 min (H.265/NVENC), 18GB
160+ min (CPU), 17.5GB
42 min (CUDA), 18GB
Animation
15 min (H.264/CUDA), 4.5GB
75 min (CPU), 4.8GB
16 min (CUDA), 4.7GB
Archival AV1 Quality
50 min (AV1/NVENC), 3.2GB
No hardware AV1
52 min (SW, slow)

‼️Note: Actual times and sizes vary with settings, source complexity, and hardware. Lightning Shrink’s primary advantage is in leveraging hardware pipelines for significant throughput gains while maintaining codec efficiency.

Limitations, Edge Cases & Compatibility Considerations

Lightning Shrink delivers impressive results under optimal conditions, but a comprehensive evaluation demands attention to its technical boundaries, edge-case behavior, and hardware/software integration limits. No compression tool is flawless; understanding these contours is essential for robust workflow planning.


Hardware/Platform Gaps and Known Issues

Despite broad compatibility claims, Lightning Shrink's peak performance and full features depend on meeting specific hardware and system requirements:
Area
Potential Limitation / Edge Case
Notes and Examples
GPU Support
Incomplete on older NVIDIA, AMD, or Intel GPUs; AV1 accelerated encoding limited to RTX 40XX/5000+, Intel Arc, AMD Ryzen 7000+
Users with legacy or entry-level GPUs may experience only modest speed-ups, or find advanced codecs unsupported.
Driver/OS Dependency
Requires updated drivers and recent versions of Windows
Outdated drivers may cause hardware acceleration features to be absent or unstable.
Multi-audio/Subtitles
Some configurations may not retain all soundtracks or embedded subtitle options
Occasional reports of missing or incomplete metadata in output, especially on non-standard Blu-ray sources.
Batch & Automation
Batch encoding functions exist but advanced automation (e.g., scripting/custom triggers) is less flexible than open-source tools
For large-scale operations, users may find HandBrake/FFmpeg scripting ecosystems more adaptable.
Output Container Choice
Fewer advanced muxing or splitting options than command-line competitors
Complex workflows (e.g., custom streams, rare containers) may require post-processing with other tools.

User Experience and Workflow Integration

Beyond raw technical capabilities, a video compression tool’s effectiveness also hinges on how smoothly it fits into real-world workflows—whether for hobbyists backing up collections or professionals managing high-volume assets. Lightning Shrink aims to strike a balance between user accessibility and operational efficiency, but the actual experience reveals both strengths and areas for improvement.

Typical Workflow Map for Video Enthusiasts

For most individual users, the compression process involves:
  1. Source Preparation: Selecting input (DVD/Blu-ray disk image, UHD video files) and verifying that copy protection, region codes, or disk integrity will not interrupt the process.
  2. Profile Selection: Choosing desired output codec, container, and quality presets, aided by Lightning Shrink’s guided menus and recommendations.
  3. Hardware Utilization Checks: Ensuring recognized hardware (e.g., GPU model, drivers) is listed as “enabled” for acceleration.
  4. Compression & Monitoring: Initiating the encoding job and observing real-time progress. Visual indicators and log readouts offer feedback, but advanced users may miss the granular controls available in tools like FFmpeg.
  5. Verification: Reviewing final output for expected file size, retained audio/subtitles, and visual quality. Occasional manual adjustments or repeated runs may be needed if rare issues occur.

Challenges in Large-Scale or Pro Setups

For professionals or institutions handling multi-terabyte archives, high-frequency batch encoding, or complex asset management, additional considerations surface:
  • Batch Functionality: While Lightning Shrink supports batch operations, its automation options remain less granular than those possible via open-source CLI solutions with scripting.
  • Resource Allocation: On shared or virtualized systems, GPU resources may not consistently be available, potentially degrading performance.
  • Integration with Asset Management: Exporting logs, organizing outputs to match standardized naming or asset conventions, or triggering post-processing jobs all typically require external tools or manual steps.
  • Error Handling: Non-standard sources (e.g., rare subtitle formats, damaged disks) sometimes reveal error handling limitations—resulting in partial encodes or skipped tracks without detailed explanatory logs.
Overall, Lightning Shrink remains a capable plug-and-play solution for enthusiasts or semi-professional users, offering a clean interface and quick startup. However, in advanced environments demanding maximum workflow control, auditability, or tailored automation, open-source solutions continue to lead.

Looking Forward: The Road for Codec Standards

As the demand for ultra-high-definition video and efficient large-scale storage continues to rise, the landscape of video compression is rapidly evolving on both software and hardware fronts. Lightning Shrink’s trajectory highlights some of these broader industry shifts, but emerging standards and technological advances are likely to redefine the benchmarks in years to come.

The rise of AV1 as a royalty-free, high-efficiency codec is shaping new capabilities and expectations in the compression field. While Lightning Shrink, with recent updates, now supports AV1 hardware encoding, broad adoption still depends on the pace of hardware deployment—current acceleration is generally limited to the latest generation GPUs (NVIDIA RTX 40/50-series, Intel Arc, AMD Ryzen 7000+).
Meanwhile, open-source encoders and decoders (such as SVT-AV1, libaom, and integration within FFmpeg) are maturing quickly. Industry collaboration on open standards points toward greater interoperability and faster cross-platform optimization as hardware support spreads. The lines between proprietary and open solutions are blurring, with user communities increasingly prioritizing transparency, reliability, and long-term maintainability.

Summary

Lightning Shrink exemplifies the intersection of hardware acceleration and evolving codec technologies, aiming to meet the mounting demands of high-resolution video compression in both consumer and professional contexts. Its strengths—speed, efficient handling of large UHD and Blu-ray sources, and relative ease for Windows users with modern GPUs—are evident in practical tests and direct comparisons.
However, no single compression tool provides universal answers. Lightning Shrink’s performance is highly contingent on up-to-date hardware support, while certain limitations in automation, batch processing, and platform versatility persist. Meanwhile, established open-source alternatives like HandBrake and FFmpeg offer unmatched flexibility, robust scripting capabilities, and faster adoption of emerging codecs—though they may pose a steeper learning curve and require more effort to optimize for hardware.
Looking forward, the rapid evolution of codec standards (AV1, future VVC) and their expanding hardware compatibility, combined with open-source advances, are steadily reducing the trade-offs between encoding efficiency, quality, and accessibility. Users are best served by honestly evaluating their existing equipment, workflows, and the specific characteristics of their media libraries before selecting the most appropriate solution.
In summary:
Lightning Shrink is an effective, user-friendly tool for high-quality video compression in the right circumstances. For those demanding maximum control, cross-platform reliability, or continuous access to the latest standards, open-source workflows will continue to set the benchmark. The smart path forward is one of informed, context-driven choice—and a readiness to adapt as the technology landscape changes.
