DVD Formats Explained: Disc Types, Capacity, and Player Compatibility

DVD formats that look alike can fail for different reasons: the blank disc, DVD-Video authoring, Region 1, and NTSC all affect playback. The key point is that a DVD player file format is more than an MP4 filename, so check each layer before burning.

Whether you are comparing different DVD disc types for a home movie, computer storage, or a standard player, start with the disc type, then confirm the DVD-Video structure and US playback settings. This guide explains those checks and shows where DVD capacity changes the choice.

Quick Answer: Choose a DVD Format

• For older DVD players: DVD-R, authored as DVD-Video and finalized.
• For newer DVD players: DVD-R or DVD+R, depending on what the player accepts.
• For test burns: DVD-RW or DVD+RW, because the disc can be erased and written again.
• For computer file storage: DVD-R, DVD+R, or DVD-RAM, depending on the reader you plan to use.
• For commercial movies or software: DVD-ROM, which is factory-pressed and read-only.

For an older player, I would start by testing one finalized DVD-R authored as DVD-Video. It is a sensible first test, not a guarantee: playback also depends on the player, region, video standard, and disc quality.

Different DVD Disc Formats Explained

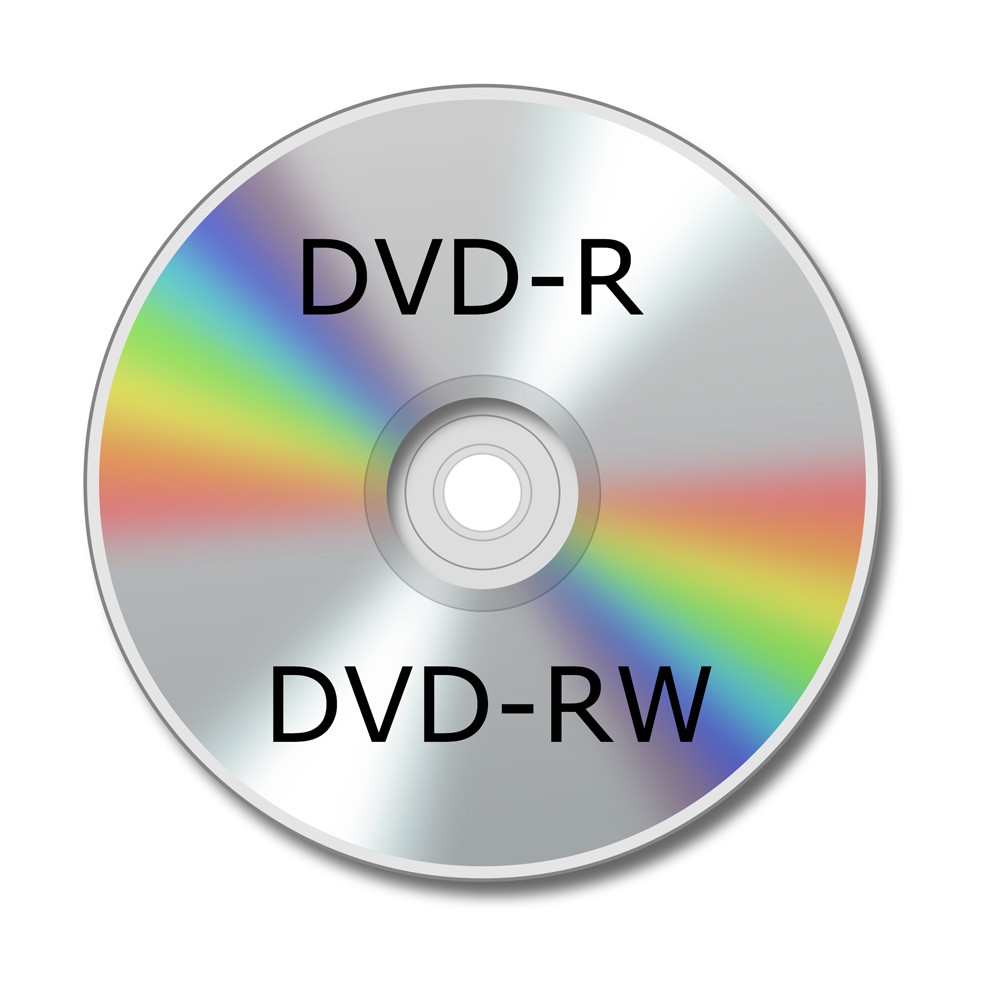

DVD-R

DVD-R (Digital Versatile Disc Recordable) is a write-once format that can be read multiple times. It is widely supported by DVD burners and many players. A single-layer disc holds about 4.7 GB, while a dual-layer disc holds about 8.5 GB. Once written, a DVD-R cannot be erased for recording again.

DVD+R

DVD+R is a write-once format similar to DVD-R. Its playback compatibility varies by player model, especially on older hardware. When standard player playback matters, confirm that the player supports DVD+R, author the disc as DVD-Video, finalize it, and test one disc before making more copies.

Quick tip: If your burner supports bitsetting, setting a DVD+R disc to DVD-ROM book type may help with some older players. Test the result on the player you plan to use.

DVD-RW and DVD+RW

DVD-RW and DVD+RW can be erased and written again. They are useful when you want to test a menu, check chapter points, or move temporary files.

They are not my first choice for a final movie disc. Older DVD players may reject rewritable media, and some players are sensitive to how the disc was recorded. For a final disc that you plan to give to someone else, use DVD-R or DVD+R instead.

DVD-RAM

DVD-RAM is the most technically advanced of all recordable formats. It supports true random access, built-in defect management, and an exceptional rewrite lifespan (up to 10,000 cycles). This makes it extremely reliable for data backup, professional archiving, and video recording devices like Panasonic camcorders or set-top recorders. However, DVD-RAM discs are not compatible with most standard DVD players or drives, and their availability has declined in recent years.

DVD-ROM

DVD-ROM is the factory-pressed, read-only format used for commercial movies, games, and software distribution. These discs cannot be burned or modified. Pressed DVD-ROM and DVD-Video discs are broadly supported by compatible hardware, but region coding, disc condition, laser condition, and device capabilities can still prevent playback.

DVD-R DL and DVD+R DL

DL means dual layer. These discs hold about 8.5 GB, compared with about 4.7 GB on a single-layer disc. Dual-layer discs can help when a movie is too long for a single-layer DVD. The trade-off is compatibility. Some players pause at the layer change, and low-quality blank media can cause read errors. If the disc must play in an older DVD player, a single-layer DVD-R with a shorter project is often safer.

DVD formats share the same physical diameter, but DVD capacity varies by sides and layers. Common recordable media hold about 4.7 GB on one layer or about 8.5 GB on two layers, while less-common side and layer combinations can hold more. The better blank disc depends on the burner, the target player, the age of the hardware, and whether the disc is authored and finalized correctly.

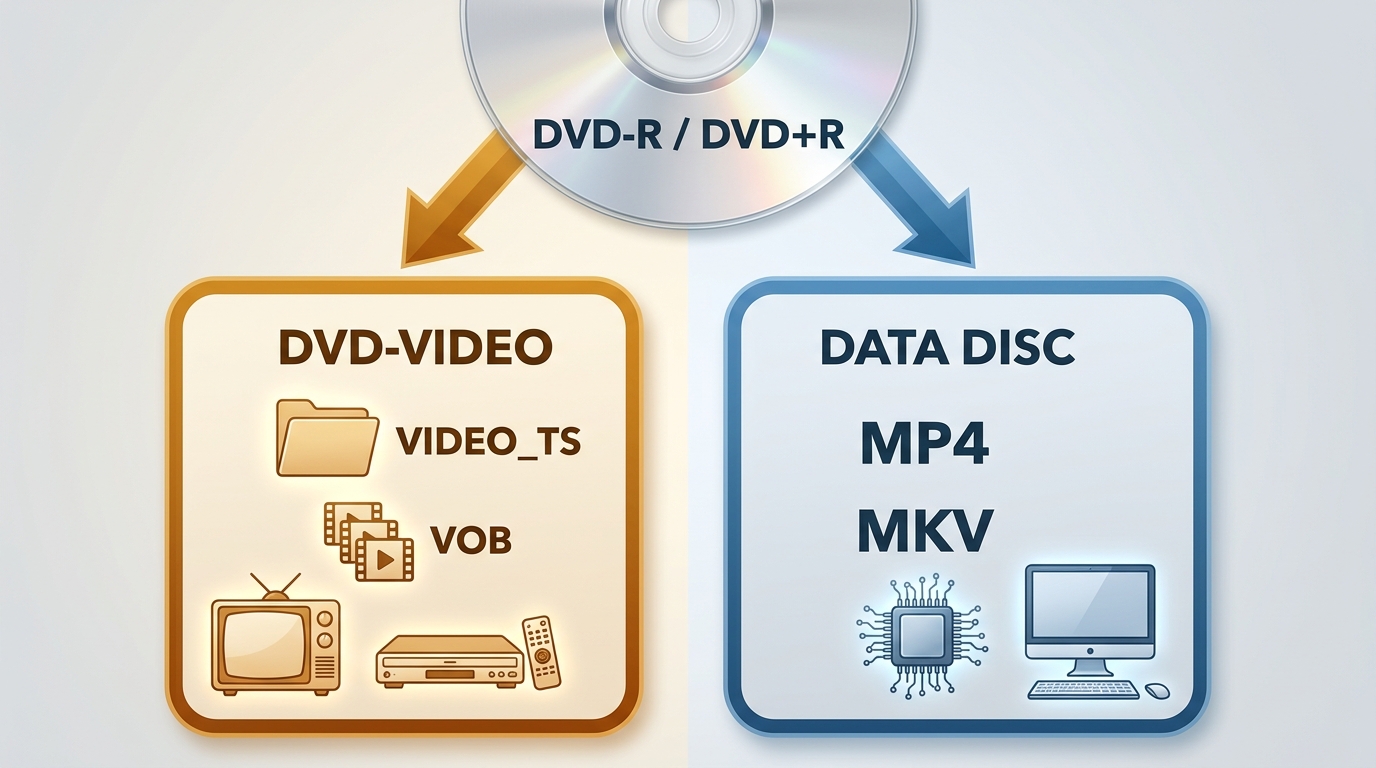

Physical and Logical DVD Formats

When people talk about DVD format, they often mix up two very different concepts: physical formats and logical formats. Understanding this distinction helps explain why two DVDs that look identical can behave very differently when you try to play or copy them.

Physical Disc Formats

The physical format refers to the type of disc you can hold in your hand, such as DVD-R, DVD-RW, DVD-RAM, or DVD-ROM. Each type determines how data is recorded onto the disc's surface, whether it can be rewritten, and how compatible it is with different drives.

DVD-R or DVD+R can store video, audio, or any digital data, but they serve merely as a carrier and are not the content format itself.

DVD-Video and Data Discs

The logical format defines how the data is organized and read by a computer or player.

Two common logical formats serve different purposes:

• DVD-Video: Designed for standard DVD players. For US playback, authoring software typically creates VIDEO_TS files with VOB containers, MPEG-2 video at up to 720×480 for NTSC, AC-3 or PCM audio, the UDF 1.02 file system, and a finalized disc.
• DVD data disc: Stores general files such as MP4 videos, MKV files, documents, or photos, much like a USB drive. A computer may open these files, but copying an MP4 or MKV to a blank disc does not automatically create a DVD-Video disc.

For a standard player, authoring mode matters more than the source filename. Use DVD-Video authoring when the goal is menus, chapters, and conventional DVD-player playback.

DVD File Systems

DVDs can use several file systems to organize data:

• UDF 1.02: Common for DVD-Video discs used in set-top DVD players.
• UDF 1.5 or newer: Common for data discs and larger file storage.
• ISO 9660 and Joliet: Older computer file systems sometimes used for backward compatibility.
• UDF + ISO hybrid: A mixed structure that can improve reading on older computers and some players.

For movie playback, do not choose the file system manually unless your authoring tool asks for it. Use a DVD authoring mode or "Video DVD" mode instead of a plain data burn.

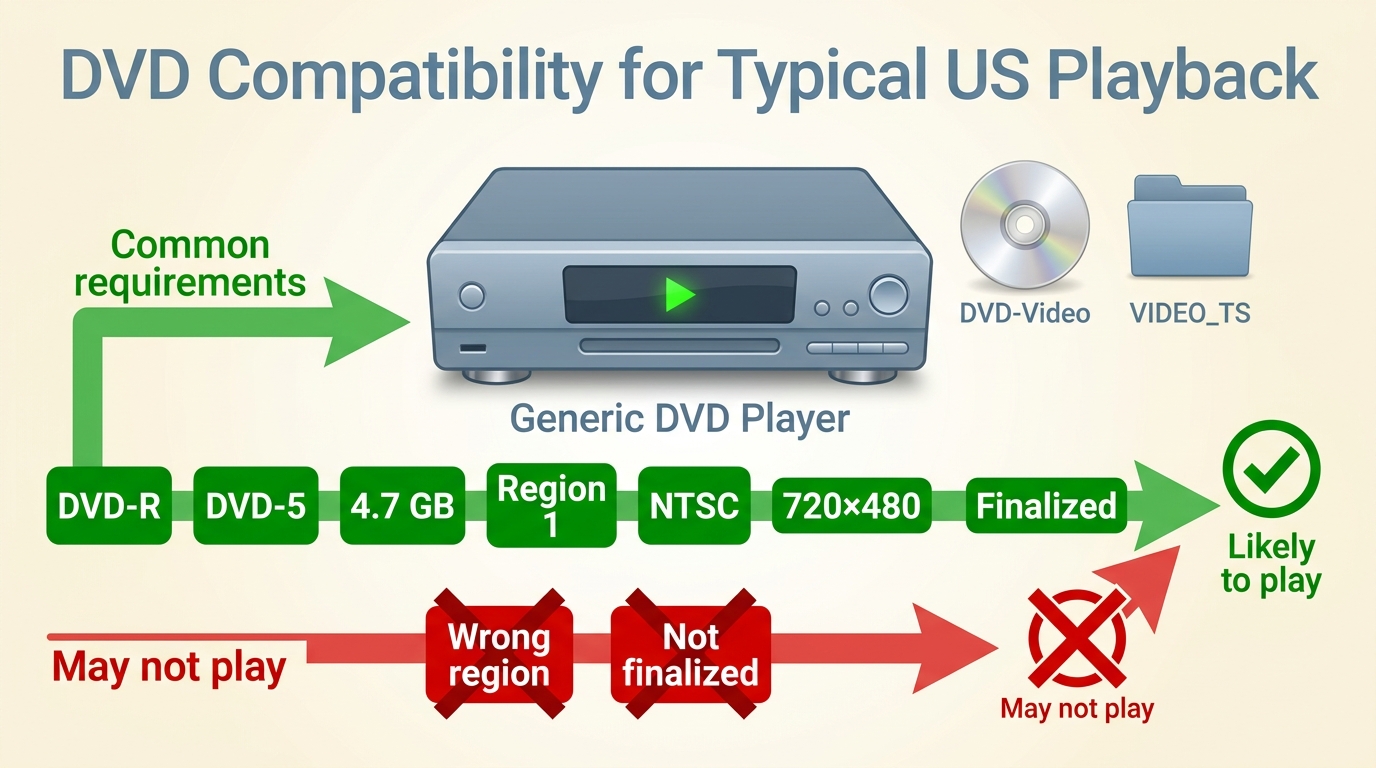

DVD Compatibility in the United States

DVD-R, DVD+R, DVD-5, DVD-9, PAL, and NTSC are often discussed together, but they do not describe the same thing. They belong to different parts of a DVD project.

DVD-R Versus DVD+R

DVD-R and DVD+R describe the write-once blank disc, not the video standard or region. Either can hold an authored DVD-Video project if the burner and target player support it. A DVD-R DVD-5 NTSC disc, for example, is a write-once DVD-R with single-layer capacity and NTSC video.

DVD-5 Versus DVD-9

DVD-5 and DVD-9 are capacity types, not recording formats. DVD-5 is a single-layer disc with about 4.7 GB of space, while DVD-9 is a dual-layer disc with about 8.5 GB. More detail on DVD size helps explain why a DVD9 to DVD5 conversion requires compression. A DVD-9 can hold longer video, but some older players are less reliable with burned dual-layer media.

Region 1 and NTSC Are Separate

Region 1 and NTSC are not blank disc types, and they do not mean the same thing. Region 1 is a region-code setting used for the United States and Canada, while NTSC is the video standard commonly used for US DVD playback. A Region 1 disc can still fail if it uses PAL video that the player does not support, and an NTSC DVD still needs compatible media and correct DVD-Video authoring.

Playback Troubleshooting Checklist

If a burned disc works on a computer but not on a DVD player, check the player manual first. Then confirm that you created DVD-Video rather than a data disc, that the player supports DVD-R or DVD+R, that the region code and NTSC or PAL setting match the player, and that the disc was finalized. Use good-quality media, choose a moderate burn setting, and test one disc on the target player before making more copies.

For a US home DVD player, DVD-R, DVD-5, NTSC, DVD-Video authoring, and finalization are a reasonable starting combination. Use DVD-9 when extra capacity avoids excessive compression or disc splitting; it does not automatically improve the source picture quality.

Conclusion

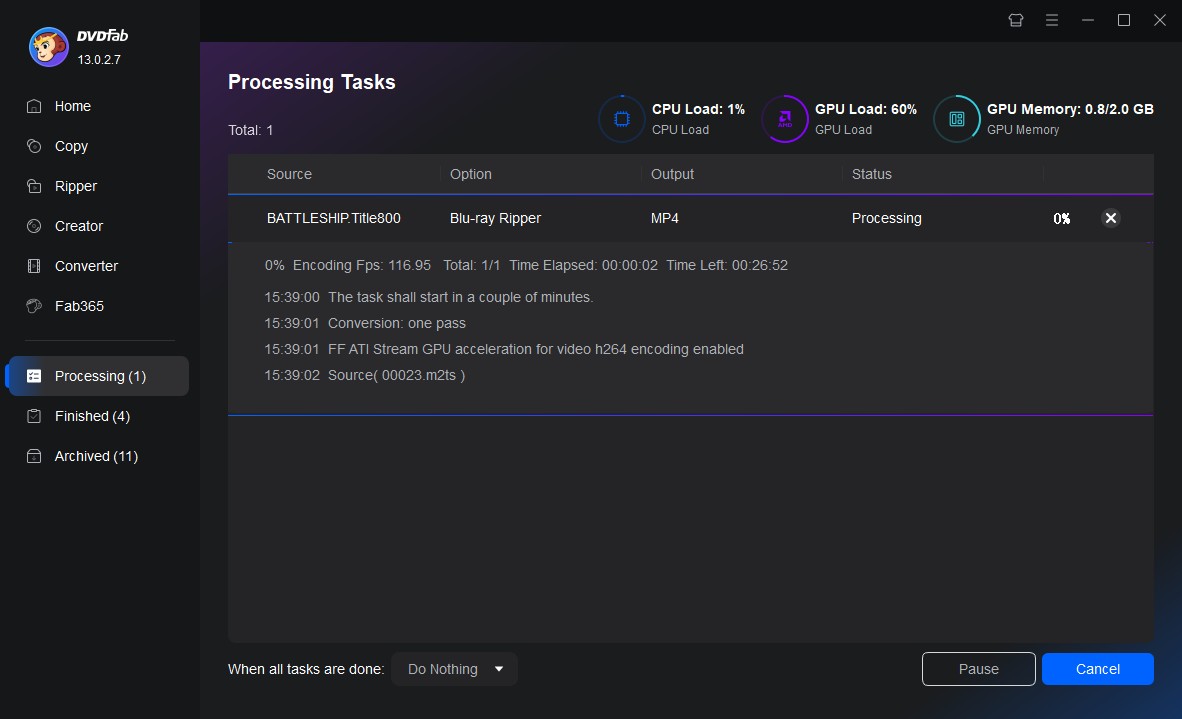

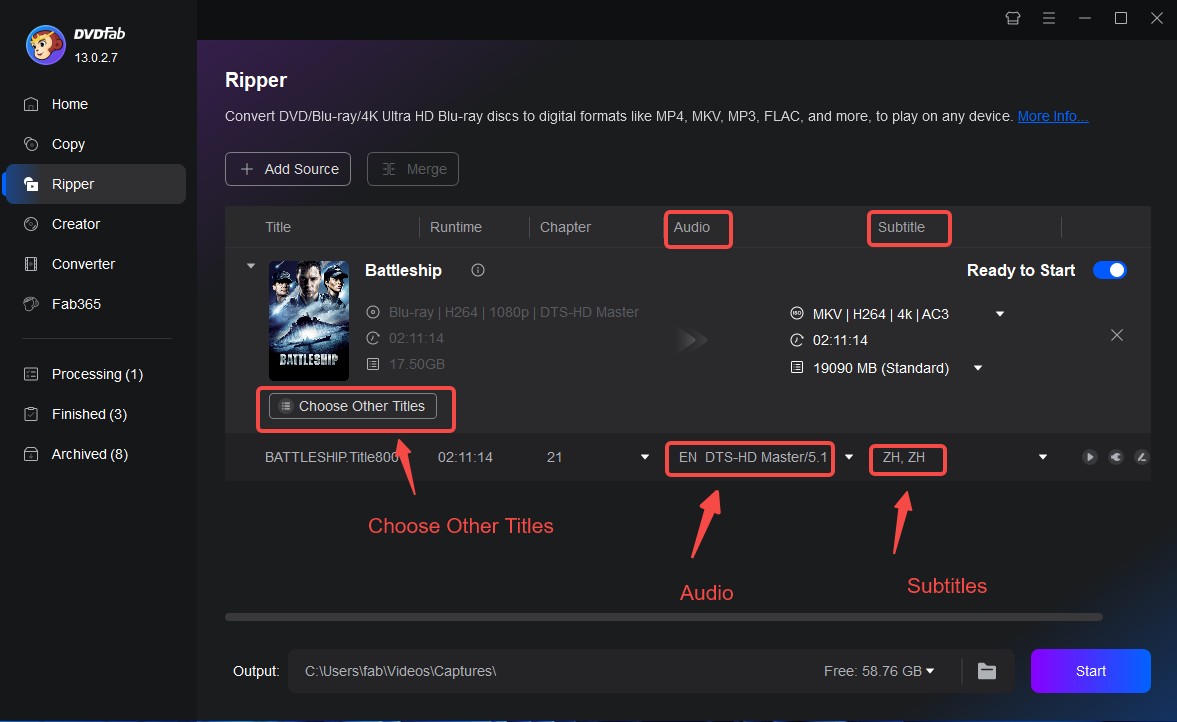

Understanding the different DVD formats helps you choose the right disc for recording, playback, or archiving. While physical media still serve valuable purposes, their lifespan and compatibility are limited. To ensure your movies, data, and memories remain accessible, converting discs to digital files with DVDFab DVD Ripper is a better solution.
