6 Best 4K Blu-ray Burners You Should Know [Software & Drive Included]
Summary: A 4K Blu-ray burning setup needs authoring software like DVDFab UHD Creator, a compatible Blu-ray/BDXL writer, and recordable media that matches the project size. External drives are easier to add to laptops or compact PCs, while internal SATA drives suit desktops with a 5.25-inch bay. Check BDXL writing support separately from UHD playback support, because one does not automatically guarantee the other.
A 4K Blu-ray burner can mean two different things: the software that authors a UHD Blu-ray structure and the physical optical drive that writes it to disc. If I want to turn a 4K MP4, MKV, or M2TS file into a playable disc, I need both parts, plus blank media with enough capacity for the project and my target player.
I focus here on the specifications that change the buying decision: BDXL write capacity, connection type, product availability, and UHD playback requirements. That keeps each 4K Blu-ray burner recommendation tied to what the drive can actually write and what the target player can read.
2 Best 4K Blu-ray Burner Software
People use “4K Blu-ray burner” for both software and hardware, but they do different jobs. Authoring software prepares the UHD Blu-ray structure, menu, audio, subtitles, and output size; the physical Blu-ray writer records that structure to disc. If you want a finished physical disc rather than an ISO or folder, you normally need both.
Professional 4K Blu-ray Burner Software: DVDFab UHD Creator
DVDFab UHD Creator is a 4K Blu-ray burner software that burns UHD Blu-ray discs from 200+ video formats like MP4, MKV, or M2TS. If you don't have a blank disc at hand, you can also save the output 4K Blu-ray as an ISO file or BDMV folder saved on your computer's HDD. You can target typical disc sizes such as BD-25 2160p, BD-50 2160p, and BD-100 2160p.
What we like most is that, as a professional UHD Blu-ray burner, DVDFab UHD Creator also offers built-in video editing features, including cropping, trimming, adding watermark and external subtitles, and adjusting brightness, so you can tailor the disc to your viewing environment.
- Create 4K Ultra HD Blu-rays from 200+ video formats
- Output BD100, BD66, BD50, ISO, or folder
- Preserve HDR10 and Dolby Vision when present in supported source video
- Create 2160p UHD output with DTS-HD, DTS:X, TrueHD, and TrueHD Atmos audio support
- Crop, trim, add watermarks and external subtitles, and adjust image settings before authoring
- Authoring and physical-disc output are available in the same application
- ISO and folder output let you prepare a project before inserting blank media
- Selectable audio tracks, subtitles, chapters, and menu settings
- GPU-accelerated processing is available on supported hardware
- Linux is not listed as a supported platform
Free 4K Blu-ray Burner Software: tsMuxeR + ImgBurn
A free alternative is to separate authoring from disc writing. tsMuxeR can remux supported video and audio streams and create Blu-ray structures without re-encoding, while ImgBurn can write the prepared image or folder to compatible Blu-ray media.
This option gives you more manual control, but it is now a legacy setup. The tsMuxeR repository was archived in April 2025 and is no longer under active development. Use this combination when you are comfortable checking the intermediate structure yourself; it does not provide the same menu-authoring features or unified support as a maintained authoring application.
- Separate the Blu-ray structure creation and disc-writing stages
- Create Blu-ray folder or ISO output without re-encoding supported streams
- Use UDF 2.50/2.60 writing and disc verification in ImgBurn
- Free tools with separate controls for building and writing the disc
- Track, chapter, and file-system settings can be adjusted manually
- An ISO can be inspected before committing the project to recordable media
- More manual setup than a dedicated UHD authoring application
- No interactive menu authoring in tsMuxeR
- ImgBurn is Windows-only, and tsMuxeR is no longer under active development
3 External 4K Blu-ray Burner Drives for PC
An external Blu-ray writer is the simplest way to add disc burning to a laptop or a PC without an internal optical bay. For 4K projects, check BDXL writing support first if you need 100GB-class recordable media.
BDXL writing and commercial 4K UHD playback are separate capabilities. A drive can write high-capacity Blu-ray media while UHD movie playback still depends on compatible playback software and, for some older UHD-certified models, specific PC hardware requirements.
Pioneer BDR-X13U-S
The Pioneer BDR-X13U-S is a full-size USB 3.2 external writer designed for desktop use. It writes single-layer BD-R at up to 16× and supports BDXL media, including 100GB triple-layer and 128GB quad-layer BD-R. CyberLink Media Suite 10 for Windows is also available for this model.
Availability is the main limitation. Pioneer Electronics USA has discontinued selling and distributing optical drives, so the BDR-X13U-S should now be treated as a remaining-stock model rather than an easy default purchase.
- Up to 16× BD-R writing
- Writes 100GB and 128GB BDXL media
- USB 3.2 connection and Windows CyberLink software bundle
- Full-size design and separate power requirements
- Pioneer USA has ended optical-drive sales and distribution

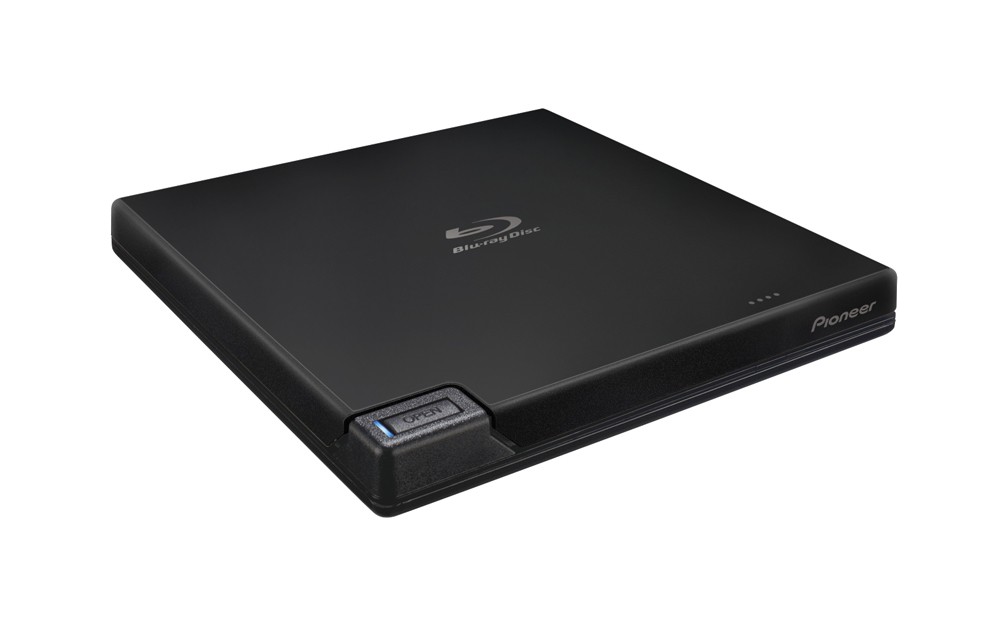

Pioneer BDR-XD07TUHD
The BDR-XD07TUHD is the portable option in this group. It weighs about 230 g, is powered through USB, writes BD-R and BD-R DL at up to 6×, and supports 100GB and 128GB BDXL media as well as M-DISC. It is better suited to portable or occasional disc writing when size matters more than maximum write speed.
Its 4K UHD playback specification needs a separate check. Pioneer's published requirements for commercial Ultra HD Blu-ray playback are tied to Windows 10, 7th-generation Intel Core hardware, Intel SGX, and HDCP 2.2-compatible output. Those playback conditions are separate from normal Blu-ray and BDXL writing support.
- About 230 g and powered through USB
- Writes 100GB and 128GB BDXL media
- Supports M-DISC and includes USB Type-A and Type-C connectivity options
- Maximum BD-R and BD-R DL write speed is 6×
- Commercial UHD playback has restrictive legacy PC requirements
- Bundled CyberLink applications are intended for Windows

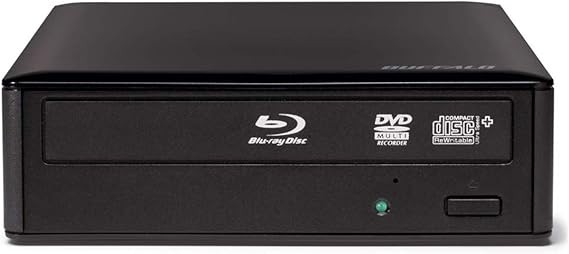

Buffalo MediaStation 16× External BDXL Burner
Buffalo's MediaStation BRXL-16U3 is an older full-size external Blu-ray writer with USB 3.0, up to 16× BD-R writing, and BDXL support up to 128GB. Its desktop design makes more sense when portability is not a priority and you can find the exact model from a reliable seller.
Because this is an older model, check the product number, bundled-software requirements, and local availability before buying. Availability varies by region and seller, so it should not be treated as a widely available current model.
- Up to 16× BD-R writing
- BDXL support up to 128GB
- USB 3.0 external connection
- Larger desktop enclosure
- Older model with inconsistent availability
- Bundled software is mainly intended for Windows users
Internal 4K Blu-ray Burner
An internal Blu-ray writer makes sense when your desktop PC has a free 5.25-inch bay and SATA connection and you do not need to move the drive between computers. It keeps the optical drive permanently installed and avoids another external device on the desk.
Do not assume an internal SATA drive automatically produces better burns than every USB model. Choose internal versus external based mainly on your PC case, available ports, portability needs, and the specific drive's supported media and write speeds.

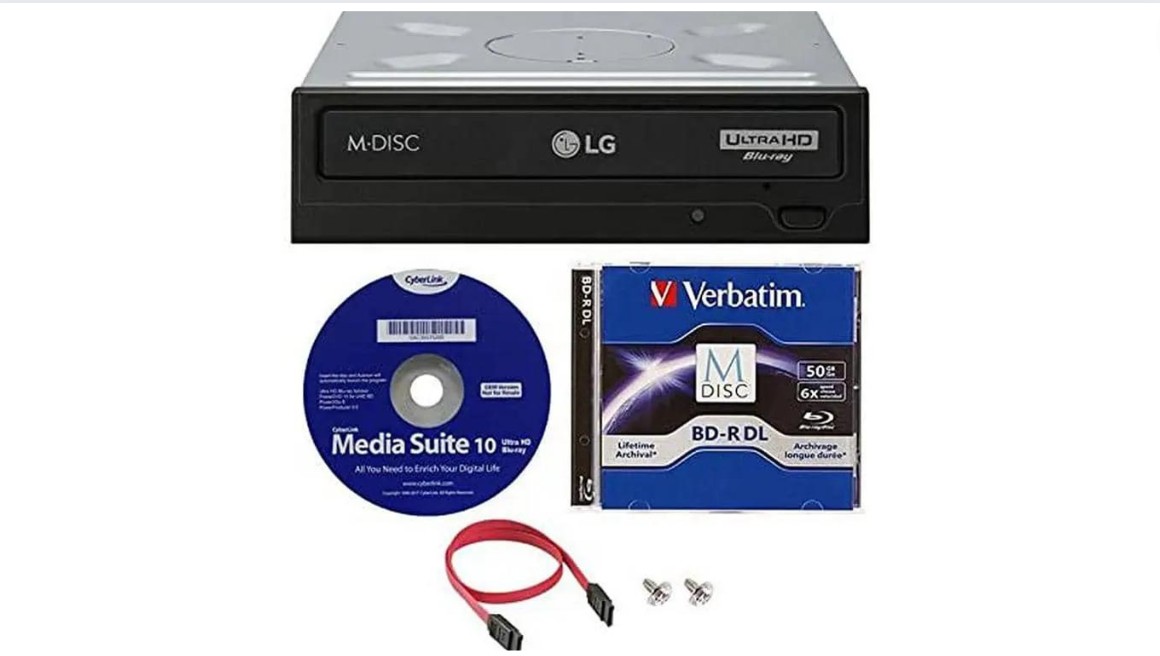

LG WH16NS60
The LG WH16NS60 is a 5.25-inch internal Blu-ray writer for desktop PCs. It provides up to 16× BD-R read/write capability and includes M-DISC, Silent Play, and Jamless Play support. DVDFab UHD Creator's supported-drive list also includes the WH16NS60 with compatible firmware 1.00.
The important limitation is product status. LG now marks the WH16NS60 as discontinued on its U.S. product page, so it makes more sense if you already own one or can find verified remaining stock than as a widely available new internal drive.
- Up to 16× BD-R read/write capability
- M-DISC support
- Silent Play and Jamless Play features
- LG marks the model as discontinued
- Requires a desktop SATA connection and a free 5.25-inch bay
Tips: How to Burn a 4K Blu-ray with DVDFab UHD Creator
After preparing the burner and drive, you can now proceed to learn how to use DVDFab UHD Creator, one of the best UHD Blu-ray burners. With clean and intuitive interface, it's quite easy to burn 4K Blu-ray with DVDFab UHD Creator. Refer to the following tips.
Install DVDFab 13 and open the UHD Creator module
Install the 64-bit version of DVDFab 13, launch the application, and open UHD Creator. On Windows, the current UHD Creator requirements list Windows 11/10 64-bit. Connect your external writer or make sure the internal drive is detected before selecting physical-disc output.
Free Download Windows 11/10 (64-bit)
Load the 4K video source and configure the UHD output
Add or drag & drop 4K video source with or without HDR10/Dolby Vision contents onto the main UI. Then go to "Advanced Settings (Wrench icon)" to set parameters for the output 4K Blu-ray: Menu Mode, Volume Label, Output (BD-25 2160P, BD-50 2160p, and BD-100 2160p), Processing Mode, and Video Quality.
Burn the disc or save the project
Insert recordable media supported by your Blu-ray writer and select the optical drive under the Save To box. If you do not want to burn immediately, select an ISO or folder destination instead. Click Start, then test the finished disc on the player you plan to use before making additional copies.
FAQs
What Do I Need to Burn 4K Blu-rays?
You need UHD authoring software like DVDFab UHD Creator, a Blu-ray writer that supports the media you plan to use, and suitable recordable media. Standard recordable Blu-ray includes 25GB and 50GB options, while BDXL recordable media extends to 100GB and 128GB. Ultra HD Blu-ray uses 66GB and 100GB capacities, so a BD66 authoring profile should not be treated as the same thing as a standard 66GB BDXL blank disc.
Can an External 4K Blu-ray Drive for PC Burn 100GB Discs?
Yes, if the drive supports writing to triple-layer BDXL media. Check the exact model's write specifications rather than relying only on a “4K” or “UHD” label, because UHD playback and BDXL writing are separate capabilities.
Why Won't My Burned 4K Disc Play in a Standalone UHD Blu-ray Player?
Writing the data successfully does not guarantee playback on every standalone UHD player. The authored disc structure, video and audio formats, recordable media, and the player's support for burned discs can all affect playback, so test the finished disc on the target player before producing more copies.
Conclusion
A 4K Blu-ray burning setup works only when the authoring software, writer, and recordable media match the same project. An external writer makes sense when you need portability or your PC has no optical bay, while an internal SATA model suits a desktop with a free 5.25-inch bay.
Before buying a drive, check its exact BDXL write capacity and product availability rather than relying on a "4K UHD" label alone. Then select an authoring output that matches your media and test the finished disc on the player you intend to use.
